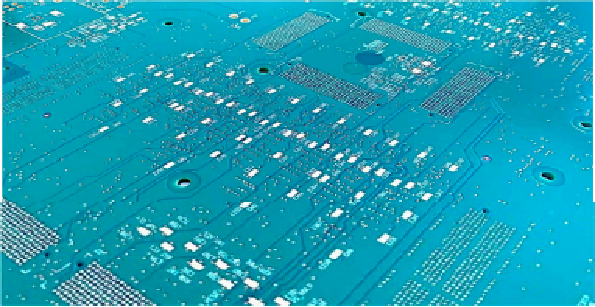

36L Semiconductor Test PCB

Device Under Test Board
36 Layer PCB
• Isola 370HR
• 16.0” x 12.0” (406x305mm)
• Thickness .131” (3.325 mm)
• 9.5 to 1 Aspect Ratio
• .002” & .0025” cores with RTF foil
• Drill/Pad .014”/.025” (.35/.64mm)
• Min. Trace Width .004” (.10mm)
• 11 controlled impedance lines
• Bow & Twist ≤ 0.5%
• ENIG
